Why Do We Use Negative Infinity for Masking in Attention?

1 min read

Why Setting Scores to 0 Doesn’t Work?

Introduction

In decoder-only models (like GPT), each token should only “see” previous tokens, not future ones. This is called causal attention. To enforce this, we use masking. But here’s the trick: we don’t mask future tokens with 0—we use negative infinity ($-\infty$).

1. What is Causal Masking?

When processing a sequence, the $i$-th token should only attend to tokens from position $0$ to $i$. We apply masking to the attention scores before softmax.

We create a mask using torch.tril (lower triangular matrix):

  • Past/current tokens → 1 (True)
  • Future tokens → 0 (False)

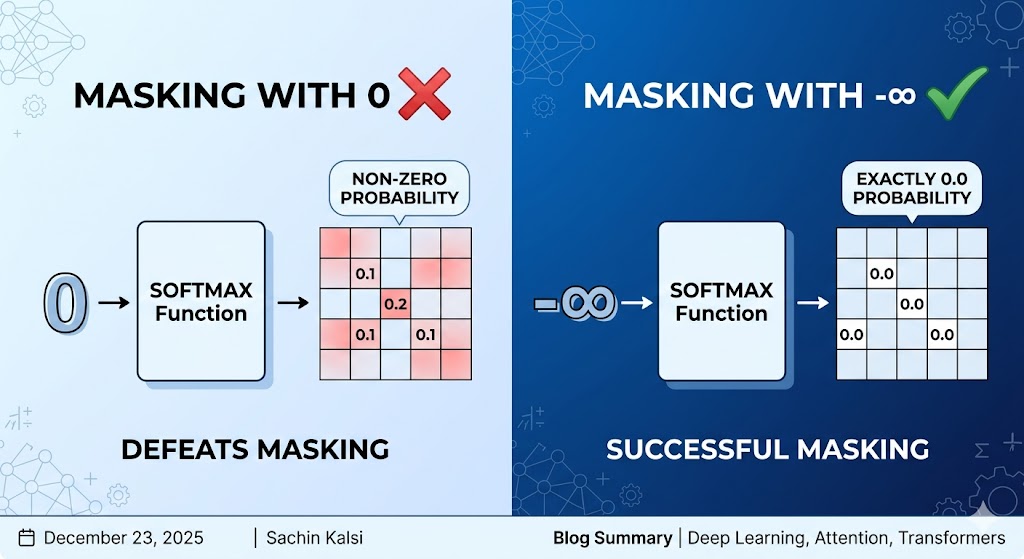

2. Why Setting Scores to 0 Doesn’t Work

Here’s the softmax formula:

\[\text{Softmax}(x_i) = \frac{e^{x_i}}{\sum_{j} e^{x_j}}\]

If you set a future token’s score to $0$:

  • The numerator becomes $e^0 = 1$
  • The token still gets a non-zero probability!

This defeats the purpose of masking.

3. The Solution: Use $-\infty$

Replace future token scores with $-\infty$ instead of $0$:

  • $e^{-\infty} = 0$
  • Softmax output for future tokens becomes exactly $0$

Practical Note: In FP16 training, we use -65504 (the minimum float16 value) instead of literal infinity to avoid numerical issues. Use torch.finfo(dtype).min to get this value.

4. How to do it in Python?

import torch
import torch.nn.functional as F

# Simulated attention scores (Query @ Key.T)
scores = torch.tensor([[10.0, 2.0, 1, 4],
                       [5.0, 11.0, 7, 3],
                       [3, 9, 7, 5],
                       [8, 9, 4, 8]])

mask = torch.tril(torch.ones(scores.shape[1], scores.shape[1]))
# tensor([[1., 0., 0., 0.],
#       [1., 1., 0., 0.],
#        [1., 1., 1., 0.],
#        [1., 1., 1., 1.]])

dtype=torch.float32
masked_scores = scores.masked_fill(mask == 0, torch.finfo(dtype).min) # or float('-inf')
# tensor([[10., -inf, -inf, -inf],
#        [ 5., 11., -inf, -inf],
#        [ 3.,  9.,  7., -inf],
#        [ 8.,  9.,  4.,  8.]])

probs = F.softmax(masked_scores, dim=-1)
# tensor([[1.0000, 0.0000, 0.0000, 0.0000], <-- Future is successfully hidden!
#        [0.0025, 0.9975, 0.0000, 0.0000],
#        [0.0022, 0.8789, 0.1189, 0.0000],
#        [0.2111, 0.5739, 0.0039, 0.2111]])
